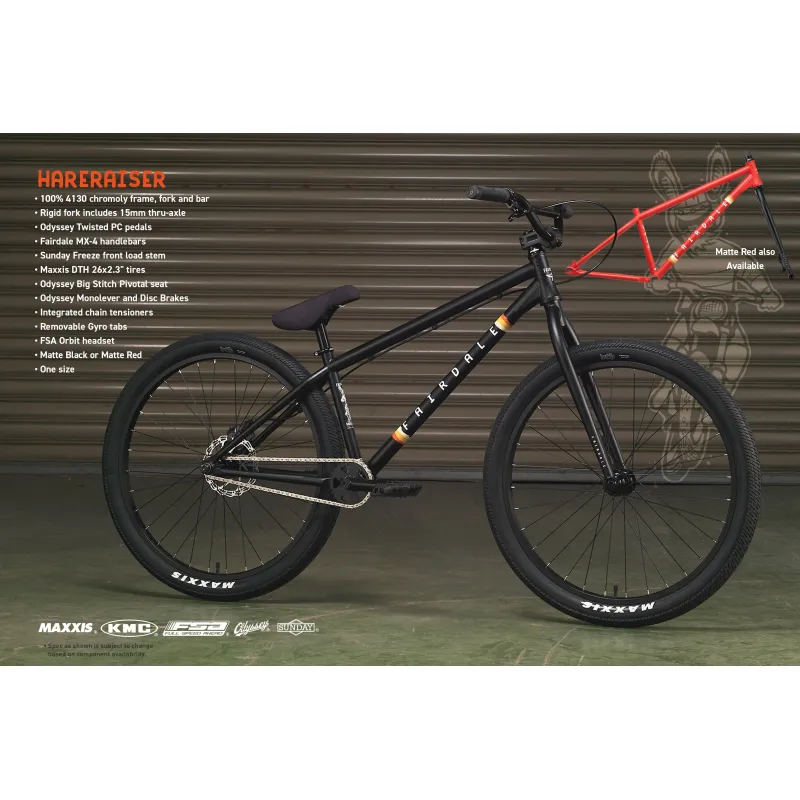

After successfully introducing the Hareraiser frame, we were asked many times for a complete bike. The frame continues to be a fully capable 26″ DJ frame is made of 100% 4130 chromoly with a 3/8″ axle slot, integrated chain tensioners, BSA 73mm threaded bottom bracket, ultra-short chainstays and a tapered 1-1/8” to 1-1/2” head tube with removable tabs for a traditional BMX-style Gyro.
The Hareraiser complete is available as both a rigid and a front suspension (FX) version.
The rigid version comes equipped with a Fairdale Hareraiser Chromoly fork with a 15mm through axle. Leaning into our BMX roots with a Fairdale MX-4 handlebar attached to a Sunday Freeze Front Load stem.
Designed from the ground up to make the transition between riding a MTB, DJ bike, and BMX as seamless as possible.
Sizing
- Small/Medium: 5’4″ height and up
- Medium/Large: 5’6″ height and up
Specs
- Frame: 100% 4130 chromoly DJ frame, 3/8″ Dropout, Threaded 73mm BB, Disc Mount
- Fork: Fairdale Hareraiser Chromoly, 15mm Thru-Axle
- Handlebar: Fairdale MX-4
- Stem: Sunday Freeze, 48mm Front Load
- Headset: FSA Orbit Sealed
- Brake Lever: Odyssey Monolever
- Brakes: Mechanical Disc
- Grips: Fairdale Swan
- Saddle: Odyssey Big Stitch, Pivotal
- Seat Post: Pivotal 27.2mm
- Seat Clamp: Fairdale 30mm
- Cranks: 19mm 8-Spline, 170mm
- Chainwheel: 28T
- BB Parts: Euro
- Pedals: Odyssey Twisted Pro PC
- Rims: 26″ 32H
- Front Hub: Sealed 15mm Thru Axle
- Rear Hub: Sealed Cassette, 3/8″ Axle, Disc
- Tires: Maxxis DTH 2.3″
- Chain: KMC Z1eHX
- Driver: 12T
Geometry
| Build | S/M Suspension | M/L Suspension | S/M Rigid | M/L Rigid |
| Fork Travel | 100mm | 100mm | 100mm | N/A |
| Fork Axle to Crown | 482mm | 482mm | 455mm | 455mm |
| Fork Offset | 40mm | 40mm | 30mm | 30mm |
| Top Tube (Effective) | 625mm | 625mm | 625mm | 625mm |
| Seat Tube (BB Center to TT Center) |
340mm | 340mm | 340mm | 340mm |
| Seat Tube Angle | 72° | 72° | 73° | 73° |
| Head Tube Length | 120mm | 120mm | 120mm | 120mm |
| Head Tube Angle | 69.5° | 69.5° | 70.5° | 70.5° |
| Chain Stay Length | 379-389mm | 379-389mm | 379-389mm | 379-389mm |
| Standover | 690mm | 690mm | 681mm | 678mm |
| Stack | 570mm | 570mm | 562mm | 561mm |
| Reach | 415mm | 440mm | 427mm | 452mm |
| BB Drop | 20mm | 20mm | 28mm | 28mm |
| Rear Dropout Spacing | 10x135mm | 10x135mm | 10x135mm | 10x135mm |
| BB Type | 73mm threaded | 73mm threaded | 73mm threaded | 73mm threaded |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm |
| Rear Tire Clearance | 2.3″ | 2.3″ | 2.3″ | 2.3″ |
| Wheel Size | 26″ | 26″ | 26″ | 26″ |
